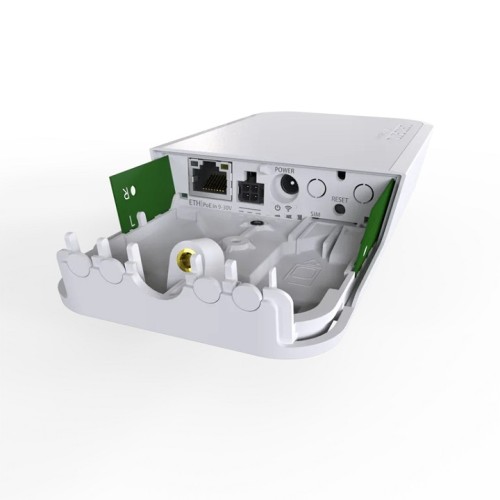

Mikrotik wAP LTE kit Weatherproof Wireless Access Point - RBwAPR-2nD&R11e-LTE

Name: Mikrotik wAP LTE kit Weatherproof Wireless Access Point - RBwAPR-2nD&R11e-LTE
Brand: MikroTik
Availability: InStock

Product Code:
Availability:

Mikrotik wAP LTE kit
In Stock

Small weatherproof wireless access point with International LTE modem

Automotive

IP 54

LTE Cat4

Mini PCI-e

Outdoors

PoE


Product code	RBwAPR-2nD&R11e-LTE

Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Dimensions	185 x 85 x 30 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40C to 50C
Powering
Number of DC inputs	3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage	9-30 V
Automotive input Voltage	9-30 V
Max power consumption	8 W
PoE in	Passive PoE
Cooling type	Passive
PoE in input Voltage	9-30 V
Mobile
2G Category	Class 12
2G bands	2 (1900 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz)
3G Category	R7 (21 Mbps Downlink, 5.76 Mbps Uplink)
3G bands	1 (2100 MHz), 2 (1900 MHz), 5 (850 MHz), 8 (900 MHz)
LTE Category	4 (150 Mbps Downlink, 50 Mbps Uplink)
LTE FDD bands	1 (2100 MHz), 2 (1900 MHz), 3 (1800 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz)
LTE TDD bands	38 (2600 MHz), 40 (2300 MHz)
TAC	35565409
Wireless specifications
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz Number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Ethernet
10/100 Ethernet ports	1
Peripherals
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1
Other
PCB temperature monitor	Yes
Voltage Monitor	Yes
Certification & Approvals
Certification	CE, FCC, IC, E-MARK, EAC, ROHS
IP	IP54
