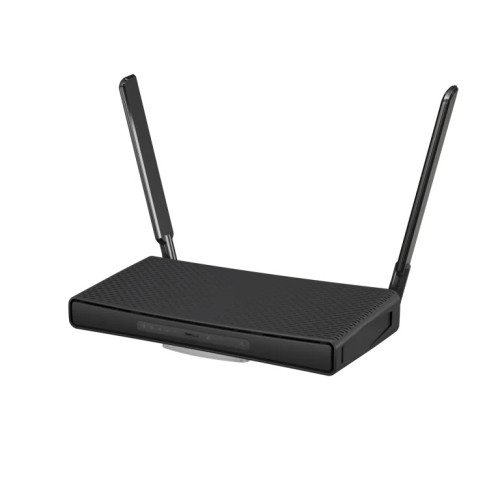

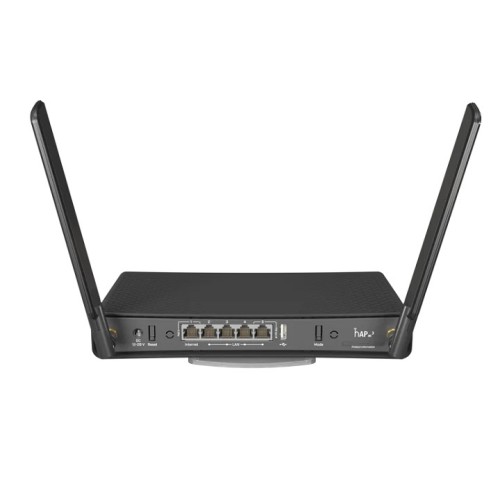

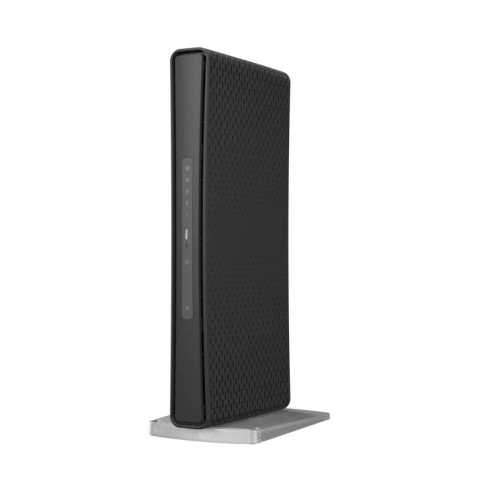

Mikrotik hAP ac³ Dual-Band Gigabit Wi-Fi 5 Wireless Router - RBD53iG-5HacD2HnD

Name: Mikrotik hAP ac³ Dual-Band Gigabit Wi-Fi 5 Wireless Router - RBD53iG-5HacD2HnD
Brand: MikroTik
Availability: InStock

Product Code:
Availability:

Mikrotik hAP ac³
In Stock

A wireless dual-band router with 5 Gigabit Ethernet ports and external high gain antennas for more coverage.

ARM

Quad-core CPU

PoE

Dual-band


Product Code	RBD53iG-5HacD2HnD

Architecture	ARM 32bit
CPU	IPQ-4019
CPU Core Count	4
CPU Nominal Frequency	448-896 (auto) MHz
CPU Threads Count	4
Switch Chip Model	IPQ-4019
Dimensions	251 x 129 x 39 mm
RouterOS License	4
Operating System	RouterOS
Size of RAM	256 MB
Storage Size	128 MB
Storage Type	NAND
MTBF	Approximately 200,000 hours at 25C
Tested Ambient Temperature	-40C to 70C
Wireless Capabilities
Wireless 2.4 GHz Max Data Rate	300 Mbit/s
Wireless 2.4 GHz Number of Chains	2
Wireless 2.4 GHz Standards	802.11b/g/n
Antenna Gain for 2.4 GHz	3 dBi
Wireless 2.4 GHz Chip Model	IPQ-4019
Wireless 2.4 GHz Generation	Wi-Fi 4
Wireless 5 GHz Max Data Rate	867 Mbit/s
Wireless 5 GHz Number of Chains	2
Wireless 5 GHz Standards	802.11a/n/ac
Antenna Gain for 5 GHz	5.5 dBi
Wireless 5 GHz Chip Model	IPQ-4019
Wireless 5 GHz Generation	Wi-Fi 5
WiFi Speed	AC1200
Ethernet
10/100/1000 Ethernet Ports	5
Number of 1G Ethernet Ports with PoE-Out	1
Peripherals
Number of USB Ports	1
USB Power Reset	Yes
USB Slot Type	USB Type A
Max USB Current	1 A
Powering
Number of DC Inputs	2 (DC jack, PoE-IN)
DC Jack Input Voltage	12-28 V
Max Power Consumption	30 W
Max Power Consumption Without Attachments	12 W
PoE In	Passive PoE
Cooling Type	Passive
PoE In Input Voltage	18-28 V
PoE-Out
PoE-Out Ports	Ether5
PoE Out	Passive PoE
Low Voltage PoE-Out Current Limit	0.5 A
Max Total Out	0.5 A
Certification & Approvals
Certification	CE, FCC, IC, EAC, ROHS
IP Rating	IP20
Other
Mode Button	Yes
