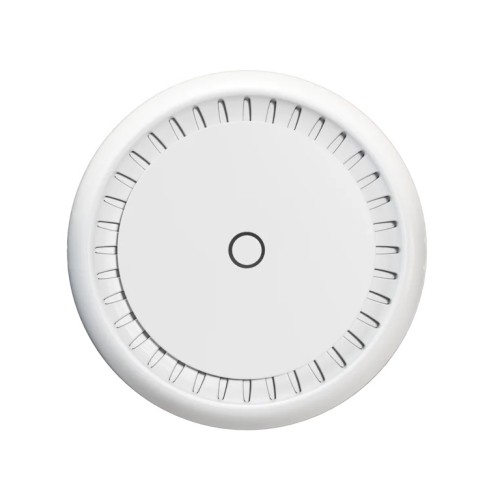

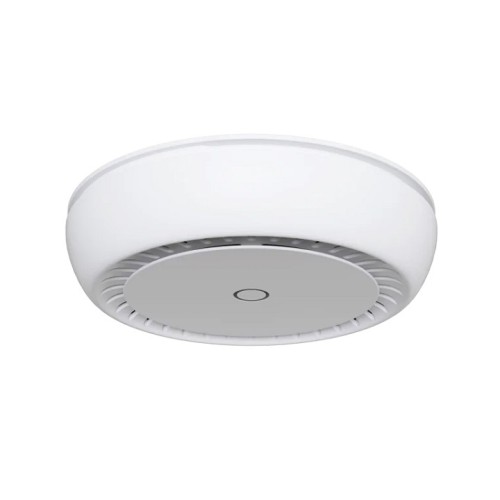

Mikrotik cAP XL ac High-Gain Dual-Band Ceiling Access Point - RBCAPGI-5ACD2ND-XL
New
Mikrotik cAP XL ac High-Gain Dual-Band Ceiling Access Point - RBCAPGI-5ACD2ND-XL
Product Code:
Availability:
Availability:
Mikrotik cAP XL ac
In Stock
In Stock
The ceiling AP on steroids! Our bestseller cAP is back – juiced up and stronger than ever. Compared to the previous cAP models, the improved high-gain antenna increases the covered area by up to 100%!
ARM
Quad-core CPU
PoE
Dual-band
Description
| Product code | RBcAPGi-5acD2nD-XL |
|---|---|
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 488-896 (auto) MHz |
| CPU Threads count | 4 |
| Switch chip model | IPQ-4018 |
| Dimensions | 191 x 42 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40C to 70C |
| Wireless capabilities | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 6 |
| Wireless 2.4 GHz chip model | IPQ-4018 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC1200 |
| Ethernet | |

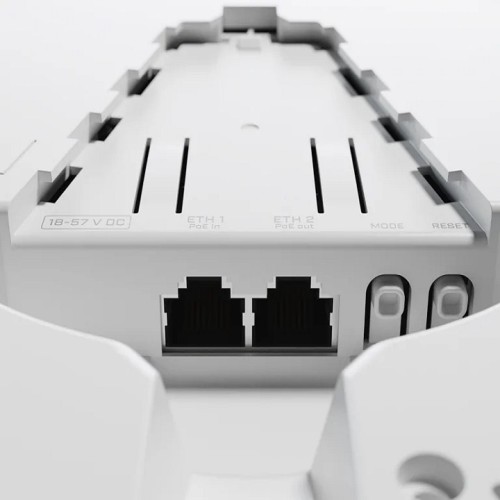

| 10/100/1000 Ethernet ports | 2 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Powering | |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 24 W |
| Max power consumption without attachments | 11 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
| PoE-out | |
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Low voltage PoE-Out current limit | 500 mA |
| High voltage PoE-Out current limit | 330 mA |
| Max total out (A) | 500 mA |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| Other | |
| Mode button | Yes |
