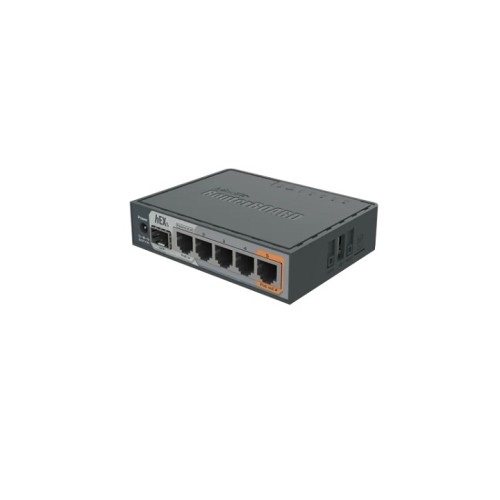

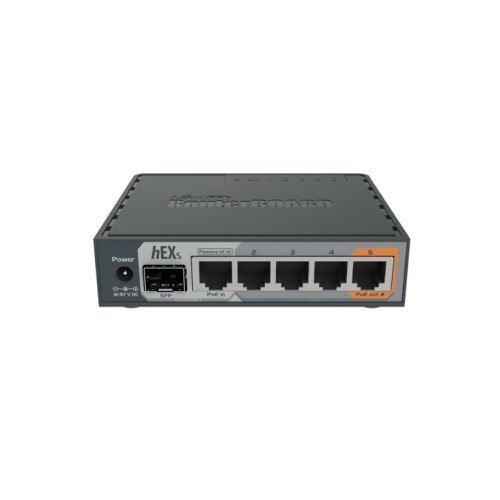

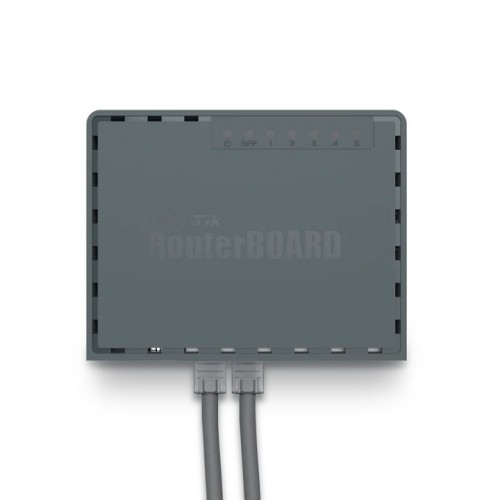

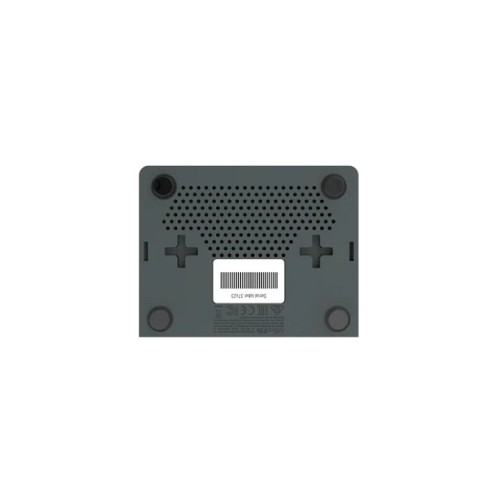

Mikrotik hEX S 5-Port Gigabit Router with SFP and PoE Out - RB760iGS
Mikrotik hEX S 5-Port Gigabit Router with SFP and PoE Out - RB760iGS

  • Mikrotik hEX S 5-Port Gigabit Router with SFP and PoE Out - RB760iGS

  • Mikrotik hEX S 5-Port Gigabit Router with SFP and PoE Out - RB760iGS

  • Mikrotik hEX S 5-Port Gigabit Router with SFP and PoE Out - RB760iGS

Mikrotik hEX S 5-Port Gigabit Router with SFP and PoE Out - RB760iGS
MikroTik

Mikrotik hEX S 5-Port Gigabit Router with SFP and PoE Out - RB760iGS

   0 reviews
Product Code:
Availability:
Mikrotik hEX S
In Stock
5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package
PoE
SFP/SFP+
chat with Ruijiedubai.com
Description

Product codeRB760iGS


ArchitectureMMIPS
CPUMT7621A
CPU core count2
CPU nominal frequency880 MHz
CPU Threads count4
Switch chip modelMT7621A
Dimensions113 x 89 x 28 mm
RouterOS license4
Operating SystemRouterOS
Size of RAM256 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-40C to 70C
Powering
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-57 V
Max power consumption24 W
Max power consumption without attachments6 W
PoE in802.3af/at
Cooling typePassive
PoE in input Voltage12-57 V
PoE-out
PoE-out portsEther5
PoE outPassive PoE up to 57V
Low voltage PoE-Out current limit500 mA
High voltage PoE-Out current limit500 mA
Max total out (A)500 mA
Ethernet
10/100/1000 Ethernet ports5
Fiber
SFP ports1
Peripherals
Memory card typemicroSD
Memory Cards1
Number of USB ports1
USB Power ResetYes
USB slot typeUSB Type-A
Max USB current (A)1
Other
PCB temperature monitorYes
Voltage MonitorYes
Mode buttonYes
BeeperYes
Certification & Approvals
CertificationCE, EAC, ROHS
IPIP20
