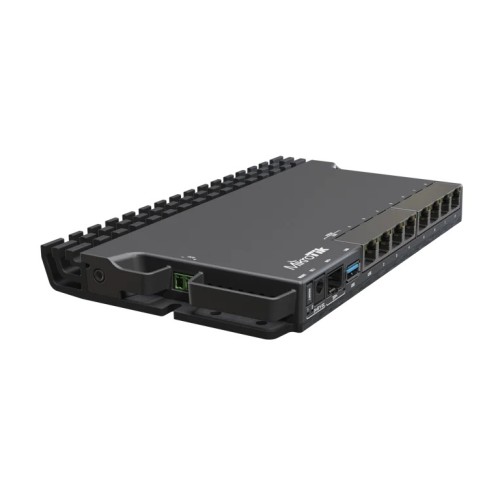

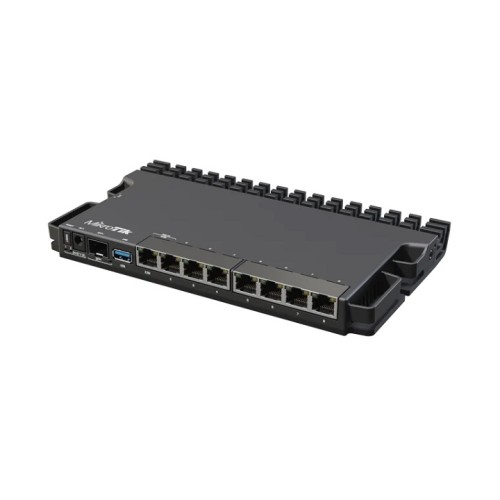

Mikrotik RB5009UG+S+IN Heavy-Duty Wired Gigabit Router
Mikrotik RB5009UG+S+IN Heavy-Duty Wired Gigabit Router

  • Mikrotik RB5009UG+S+IN Heavy-Duty Wired Gigabit Router

Mikrotik RB5009UG+S+IN Heavy-Duty Wired Gigabit Router
MikroTik

Mikrotik RB5009UG+S+IN Heavy-Duty Wired Gigabit Router

   0 reviews
Product Code:
Availability:
Mikrotik RB5009UG+S+IN
In Stock
 The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.
ARM64
Quad-core CPU
2.5G
PoE
ROS v7
SFP/SFP+
chat with Ruijiedubai.com
Description

Product CodeRB5009UG+S+IN


ArchitectureARM 64bit
CPU88F7040
CPU Core Count4
CPU Nominal Frequency350-1400 (auto) MHz
CPU Threads Count4
Switch Chip Model88E6393
Dimensions220 x 125 x 22 mm
RouterOS License5
Operating SystemRouterOS v7
Size of RAM1 GB
Storage Size1 GB
Storage TypeNAND
MTBFApproximately 200,000 hours at 25C
Tested Ambient Temperature-40C to 60C
Powering
Number of DC Inputs3 (DC jack, PoE-IN, 2-pin terminal)
DC Jack Input Voltage24-57 V
2-Pin Terminal Input Voltage24-57 V
Max Power Consumption25 W
Max Power Consumption Without Attachments14 W
PoE In802.3af/at
Cooling TypePassive
PoE In Input Voltage24-57 V
Ethernet
10/100/1000 Ethernet Ports7
Number of 2.5G Ethernet Ports1
Fiber
SFP+ Ports1
Peripherals
Number of USB Ports1
USB Power ResetYes
USB Slot TypeUSB 3.0 Type A
Max USB Current1.5 A
Other
CPU Temperature MonitorYes
Certification & Approvals
CertificationCE, EAC, ROHS
