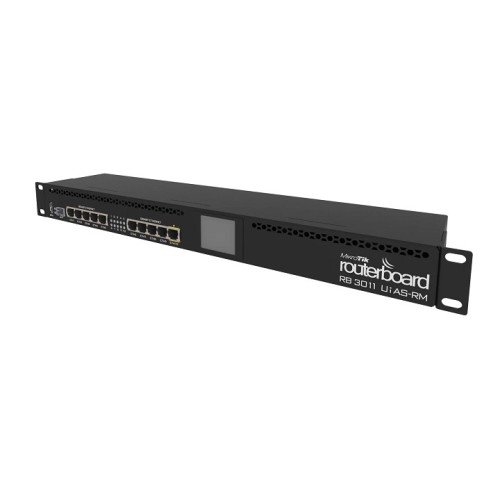

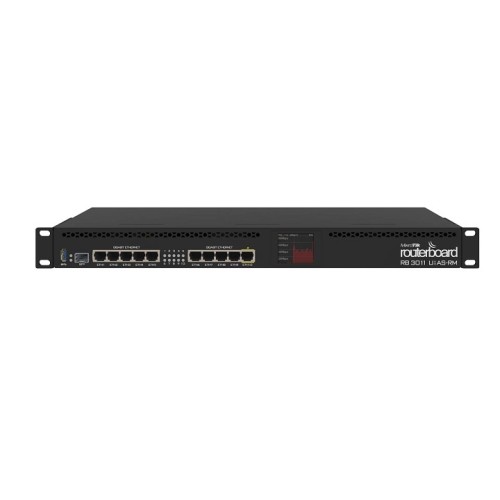

Mikrotik RB3011UiAS-RM 10-Port Gigabit Enterprise Rackmount Router

Name: Mikrotik RB3011UiAS-RM 10-Port Gigabit Enterprise Rackmount Router
Brand: MikroTik
Availability: OutOfStock

Product Code:
Availability:

Mikrotik RB3011UiAS-RM
Out Of Stock

1U rackmount, 10xGigabit Ethernet, SFP, USB 3.0, LCD, PoE out on port 10, 2x1.4GHz CPU, 1GB RAM, RouterOS L5

ARM

PoE

ROS v7

SFP/SFP+


Product Code	RB3011UiAS-RM

Architecture	ARM 32bit
CPU	IPQ-8064
CPU Core Count	2
CPU Nominal Frequency	1.4 GHz
CPU Threads Count	2
Switch Chip Model	QCA8337
Dimensions	443 x 92 x 44 mm
RouterOS License	5
Operating System	RouterOS v7
Size of RAM	1 GB
Storage Size	128 MB
Storage Type	NAND
MTBF	Approximately 200,000 hours at 25C
Tested Ambient Temperature	-20C to 70C
Powering
Number of DC Inputs	2 (DC jack, PoE-IN)
DC Jack Input Voltage	10-30 V
Max Power Consumption	30 W
Max Power Consumption Without Attachments	10 W
PoE In	Passive PoE
Cooling Type	Passive
PoE In Input Voltage	10-30 V
PoE-Out
PoE-Out Ports	Ether10
PoE Out	Passive PoE
Low Voltage PoE-Out Current Limit	600 mA
Max Total Out	600 mA
Ethernet
10/100/1000 Ethernet Ports	10
Fiber
SFP Ports	1
Peripherals
Serial Console Port	RJ45
Number of USB Ports	1
USB Power Reset	Yes
USB Slot Type	USB 3.0 Type A
Max USB Current	1 A
Other
PCB Temperature Monitor	Yes
Voltage Monitor	Yes
Beeper	Yes
Certification & Approvals
Certification	CE, EAC, ROHS
IP Rating	IP20
