Mikrotik netPower Lite 7R
In Stock

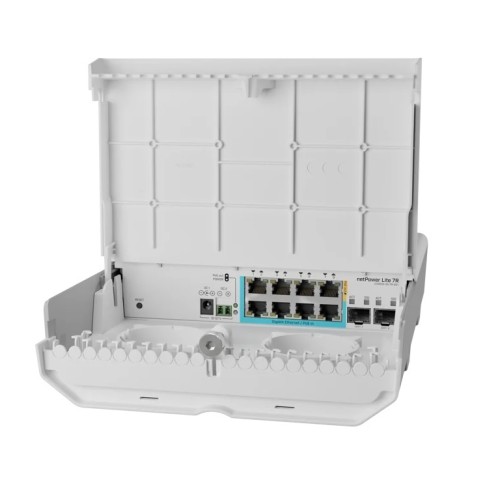

An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports.
IP 54
Outdoors
PoE
SFP/SFP+
chat with Ruijiedubai.com
Description

Product CodeCSS610-1Gi-7R-2S+OUT


Switch Chip Model88E6193X
Dimensions303.5 x 211.9 x 71.3/72.3 (left/right) mm
Operating SystemSwitchOS Lite
Storage Size64 KB
Storage TypeFLASH
MTBFApproximately 200,000 hours at 25C
Tested Ambient Temperature-40C to 70C
Powering
Number of DC Inputs3 (DC jack, PoE-IN, 2-pin terminal)
DC Jack Input Voltage12-57 V
2-Pin Terminal Input Voltage12-57 V
Max Power Consumption29 W
Max Power Consumption Without Attachments7 W
PoE InPassive PoE
Cooling TypePassive
PoE In Input Voltage12-57 V
PoE-Out
PoE-Out PortsEther8
PoE OutPassive PoE
Low Voltage PoE-Out Current Limit600 mA
High Voltage PoE-Out Current Limit450 mA
Max Total Out600 mA
Ethernet
10/100/1000 Ethernet Ports8
Number of 1G Ethernet Ports with Reverse PoE (PoE-In)7
Number of 1G Ethernet Ports with PoE-Out1
Fiber
SFP+ Ports2
Certification & Approvals
CertificationCE, EAC, ROHS
IP RatingIP54
