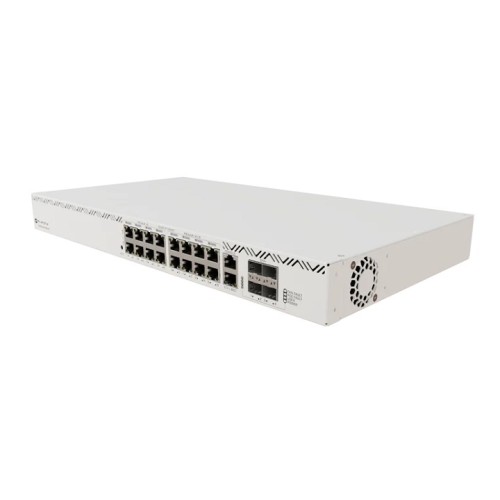

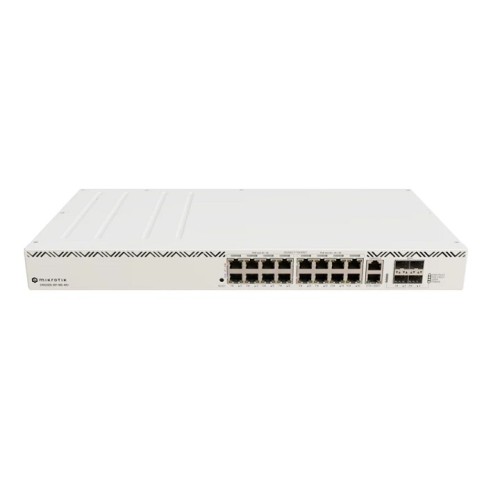

Mikrotik CRS320-8P-8B-4S+RM 17-Port Gigabit PoE++ Cloud Router Switch
Mikrotik CRS320-8P-8B-4S+RM 17-Port Gigabit PoE++ Cloud Router Switch

  • Mikrotik CRS320-8P-8B-4S+RM 17-Port Gigabit PoE++ Cloud Router Switch

  • Mikrotik CRS320-8P-8B-4S+RM 17-Port Gigabit PoE++ Cloud Router Switch

Mikrotik CRS320-8P-8B-4S+RM 17-Port Gigabit PoE++ Cloud Router Switch
MikroTik

Mikrotik CRS320-8P-8B-4S+RM 17-Port Gigabit PoE++ Cloud Router Switch

   0 reviews
Product Code:
Availability:
Mikrotik CRS320-8P-8B-4S+RM
Out Of Stock
The first MikroTik high-power PoE++ switch – for easy and cost-effective powering of industry standard 802.3af/at/bt devices. Forget about countless power cables – create a cleaner space with PoE++!
ARM
Dual boot
PoE
ROS v7
SFP/SFP+
chat with Ruijiedubai.com
Description

Product CodeCRS320-8P-8B-4S+RM


ArchitectureARM 32bit
CPU98DX226S
CPU Core Count2
CPU Nominal Frequency800 MHz
Switch Chip Model98DX226S
RouterOS License5
Operating SystemRouterOS v7 / SwitchOS
Size of RAM256 MB
Storage Size32 MB
Storage TypeFLASH
MTBFApproximately 200,000 hours at 25C
Tested Ambient Temperature-10C to 50C
Powering
Number of AC Inputs1
AC Input Range100-240 V
Number of PSU Slots2
Frequency50-60 Hz
Max Power Consumption600 W (1150 W with additional PSU)
Max Power Consumption Without Attachments36 W
Cooling Type3 fans
PoE-Out
PoE-Out PortsEther1-Ether8 (af/at), Ether9-Ether16 (bt)
PoE Out802.3af/at/bt
High Voltage PoE-Out Current Limit560 (af/at) / 1667 (bt) mA
Max Total Out17.82 A
Total Output Current17.82 A
Total Output Power963 W
Ethernet
10/100/1000 Ethernet Ports17
1G Ethernet Ports with PoE-Out16
Fiber
SFP+ Ports4
Peripherals
Serial Console PortRJ45
Other
CPU Temperature MonitorYes
PCB Temperature MonitorYes
Voltage MonitorYes
Certification & Approvals
CertificationCE, EAC, ROHS
IP RatingIP20
