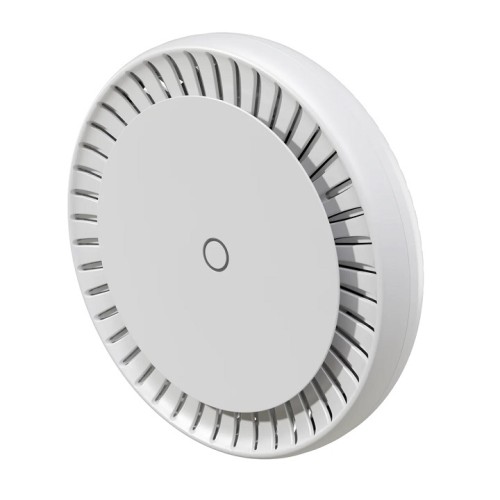

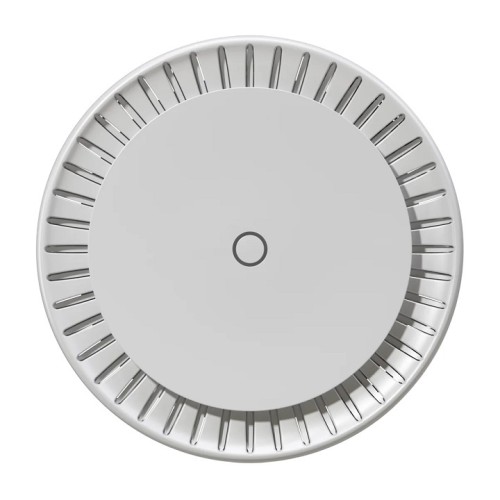

Mikrotik cAP ax Dual-Band Wi-Fi 6 Ceiling-Mount Wireless Access Point - cAPGi-5HaxD2HaxD
Mikrotik cAP ax Dual-Band Wi-Fi 6 Ceiling-Mount Wireless Access Point - cAPGi-5HaxD2HaxD
Product Code:
Availability:
Availability:
Mikrotik cAP ax
Out Of Stock
Out Of Stock
The best-selling ceiling access point is back – stronger than ever! A new generation of wireless greatness for your office, hotel, mall, or any other setups in crowded areas. Modern quad-core CPU, 1GB of RAM, 2x Gigabit Ethernet ports, PoE, Gen 6 802.11ax wireless, PSU – included!
ARM64
Quad-core CPU
PoE
ROS v7
WiFi 6
Dual-band
Description
| Product Code | cAPGi-5HaxD2HaxD |
| Architecture | ARM 64bit |
| CPU | IPQ-6010 |
| CPU Core Count | 4 |
| CPU Nominal Frequency | auto (864 - 1800) MHz |
| CPU Threads Count | 4 |
| Switch Chip Model | IPQ-6010 |
| RouterOS License | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage Size | 128 MB |
| Storage Type | NAND |
| MTBF | Approximately 200,000 hours at 25C |
| Tested Ambient Temperature | -40C to 70C |
| Wireless Capabilities | |
| Wireless 2.4 GHz Max Data Rate | 574 Mbit/s |
| Wireless 2.4 GHz Number of Chains | 2 |
| Wireless 2.4 GHz Standards | 802.11b/g/n/ax |
| Antenna Gain for 2.4 GHz | 6 dBi |
| Wireless 2.4 GHz Chip Model | QCN-5022 |
| Wireless 2.4 GHz Generation | Wi-Fi 6 |
| Wireless 5 GHz Max Data Rate | 1200 Mbit/s |
| Wireless 5 GHz Number of Chains | 2 |
| Wireless 5 GHz Standards | 802.11a/n/ac/ax |
| Antenna Gain for 5 GHz | 5.5 dBi |
| Wireless 5 GHz Chip Model | QCN-5052 |
| Wireless 5 GHz Generation | Wi-Fi 6 |
| WiFi Speed | AX1800 |
| Ethernet | |
| 10/100/1000 Ethernet Ports | 2 |
| 1G Ethernet Ports with PoE-Out | 1 |
| Powering | |
| Number of DC Inputs | 2 (DC jack, PoE-IN) |
| DC Jack Input Voltage | 18-57 V |
| Max Power Consumption | 36 W |
| Max Power Consumption Without Attachments | 11 W |
| PoE In | 802.3af/at |
| Cooling Type | Passive |
| PoE In Input Voltage | 18-57 V |
| PoE-Out | |
| PoE-Out Ports | Ether2 |
| PoE Out | Passive PoE up to 57V |
| Low Voltage PoE-Out Current Limit | 600 mA |
| High Voltage PoE-Out Current Limit | 400 mA |
| Max Total Out | 600 mA |
| Total Output Current | 0.4 A |
| Total Output Power | 19.2 W |
| Other | |
| CPU Temperature Monitor | Yes |
| Mode Button | Yes |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP Rating | IP20 |
